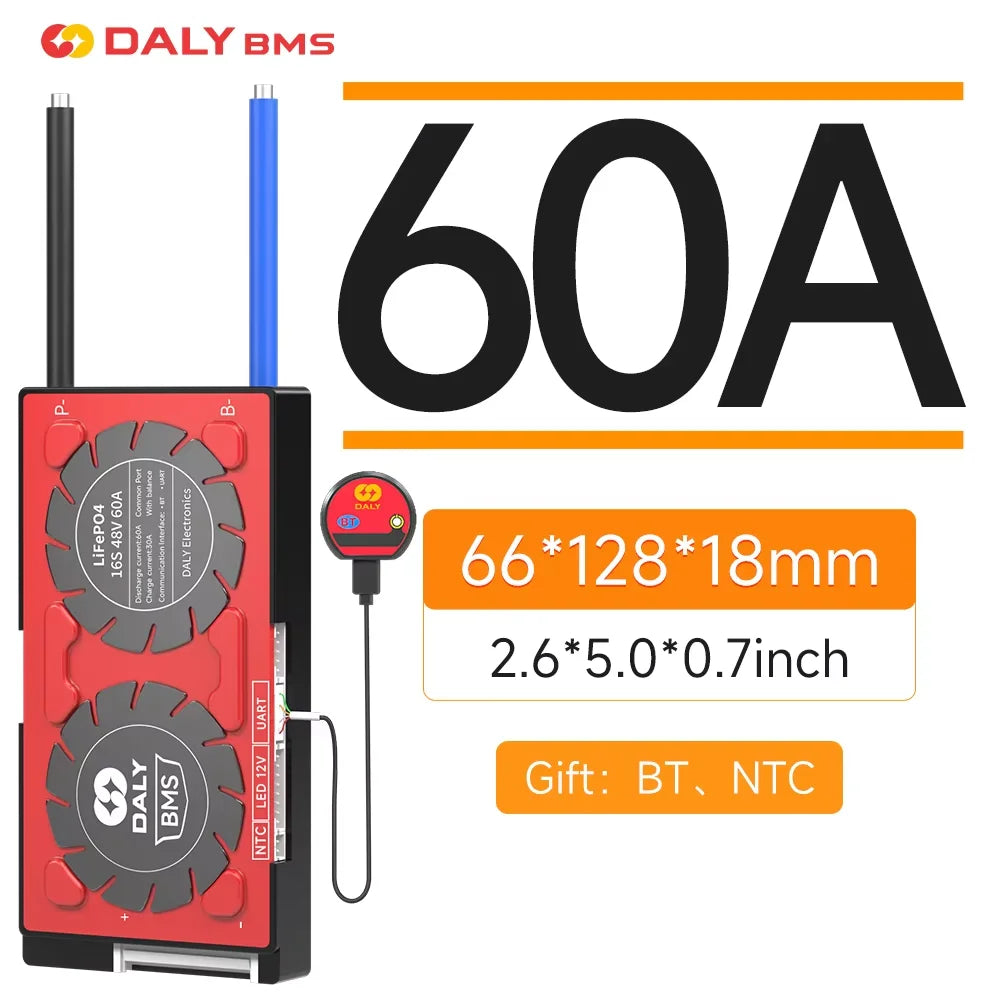

Daly Smart BMS Lifepo4 15S 16S 48V 60A APP BMS Bluetooth UART Port Solar Energy Inverter Power Bank
€26,78
Model | ||
BMS With Bluetooth,Balancing,NTC | ||
Usage Scenario | ||
Used in RV energy storage,photovoltaic energy storage,home and outdoor energy storage, | ||

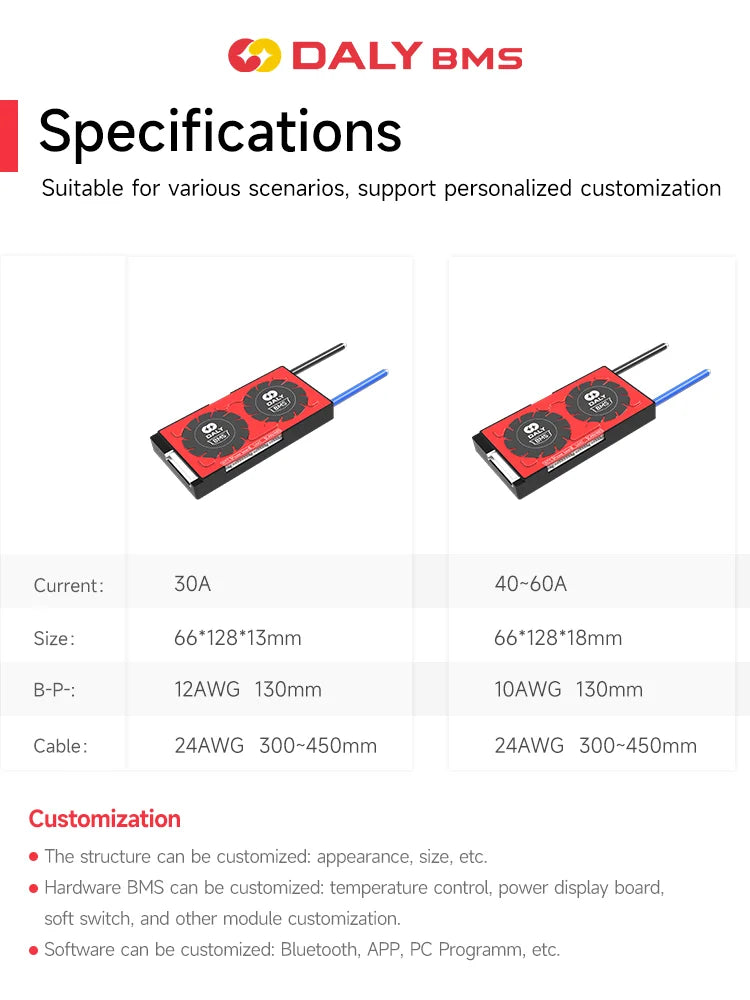

Support Customization | ||
Bulk orders can customize functions,parameters,logo. | ||
How to choose the right BMS | ||
Attention |
Illustration |
Mismatched BMS Consequences |
Lithium |
BMS type and lithium battery type must be in |
1、BMS damaged,even bms and battery burn out |
Number of battery pack |
BMS strings and battery strings must be in |
BMS and battery burn out |
Selection method |
load maximum power÷(string number of battery×overdischarge voltage)×coefficient |
|
Specialty | ||
Bluetooth function:You can monitor battery data in real time by connecting to the APP | ||
Superiority | ||
1、High-quality microelectronic components：precise and fast IC.Low resistance,high withstand voltage MOSFET. | ||
2、Through the Bluetooth APP, the battery data is constantly monitored. | ||
3、A variety of accessories,can easily control the data and modify the parameters. | ||
4、A variety of communication modes,data monitoring,alarm backtracking,data reading, and upgrade can be easily realized | ||
5、Thermal silica,accelerate the heat dissipation.Ensure the smooth operation of the battery. | ||
6、Preset interface,buckle cable,make the connection more convenient. | ||
Basic Functions | ||
Over-charging protection |
Over-discharging protection |
|
Over-current protection |
Temperature protection |
|
Disconnect protection |
Short Circuit Protection |
|
Balance Function |
Short Circuit protection recover |
|

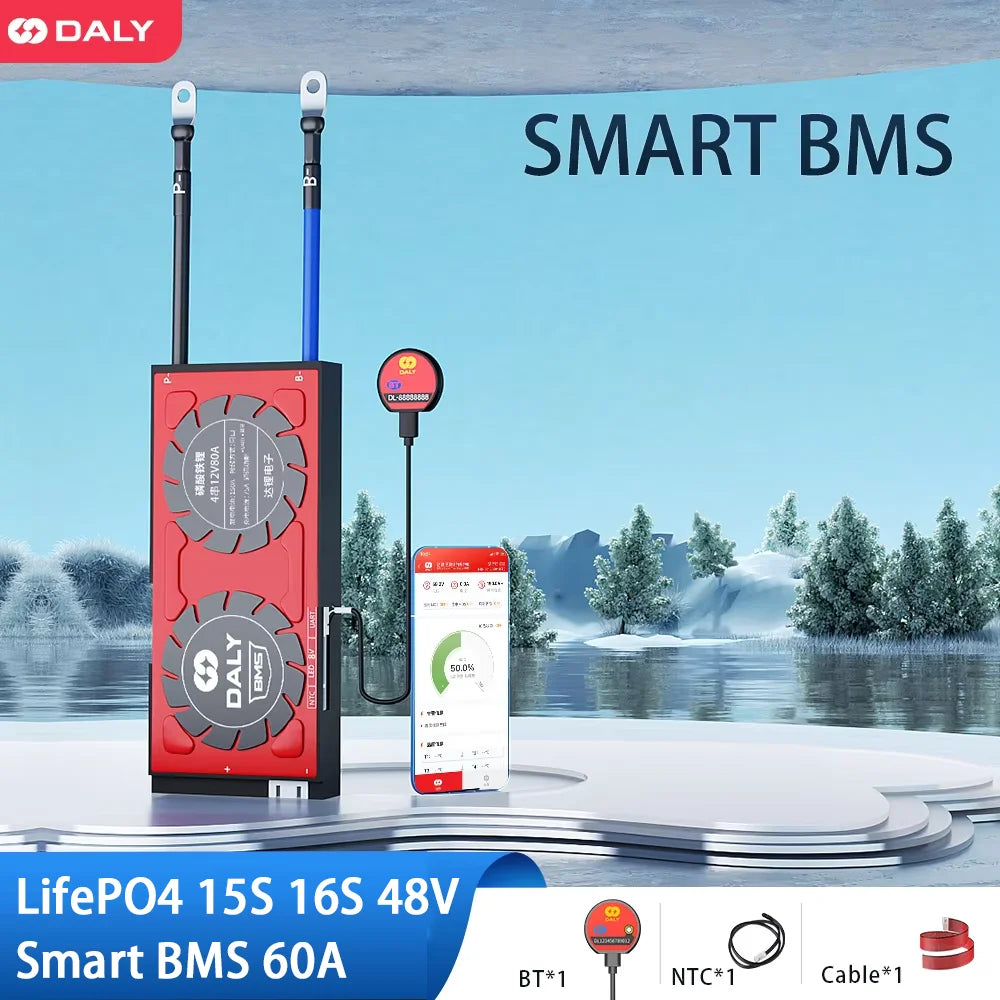

Package Contains | ||
BMS*1pcs |
Bluetooth module*1pcs |
Temperature probe(NTC)*1pcs |
Balance cable *1pcs |
English manual *1pcs |
|
Optional accessories | ||
UART to USB cable |
Battery Capacity Indicator |
Touch screen LCD |
Optional accessories, customized accessories must match the BMS model and be purchased at the same time. |

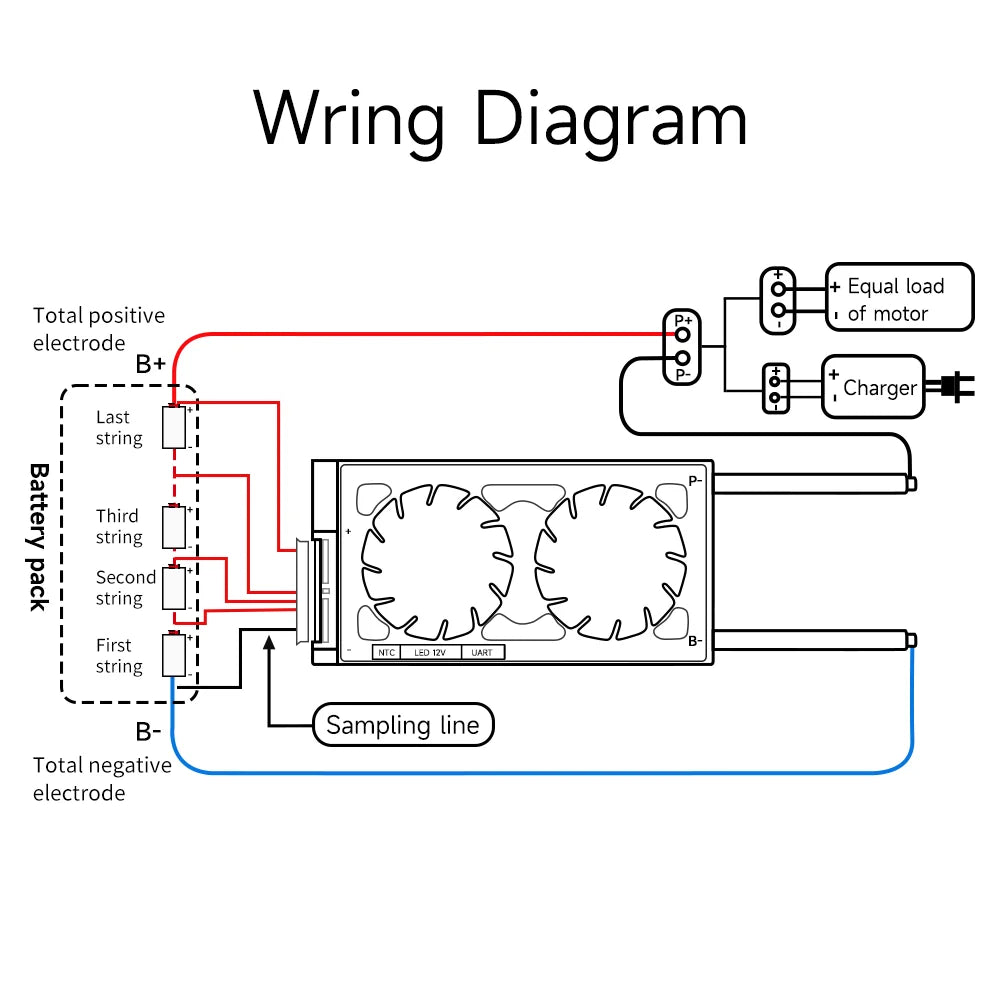

Balance cable connection | |
Preparation |
Find the total positive and total negative of the battery pack. |
Find B-/P- of BMS | |

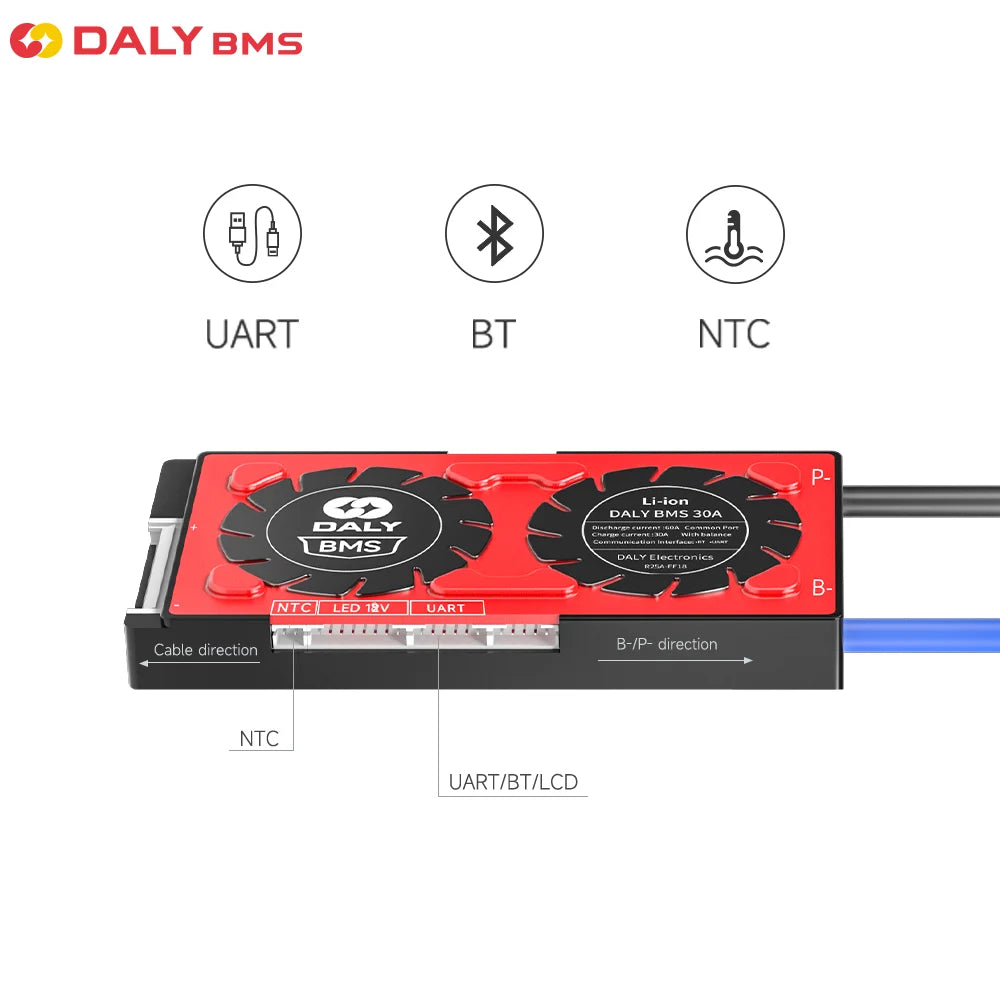

Insert temperature probe (NTC) into the BMS | |
Welding |
Note: When soldering, the balance cable cannot be inserted into the BMS |
|
1、Connect the first string (black) of the balance cable to the total negative electrode of the battery, and the second string (red) to the positive electrode of the first string of batteries.The third string (red) is connected to the positive terminal of the second string of batteries,and so on, until the last string (red) is connected to the total positive terminal of the battery.Then check whether there is any cross in the balance cable or false welding. | |
|
2、After the balance cable is connected, do not insert the plug directly into the BMS.It is necessary to measure the voltage of the adjacent point on the back of the plug. (Regular voltage range: Li-ion: 3.0-4.15V/Lifepo4: 2.5-3.6V) After confirming that the voltage is correct, insert the plug. | |
3、Connect the B-(blue) of the BMS to the total negative of the battery. | |
Voltage measurement |
measure whether the battery voltage（B+→B-)is consistent with the output voltage of the BMS(B+→P-). |
APP Download | |
Scan and download the Bluetooth APP |
BMS activation | |
Method ① |
Press the activation button on the Bluetooth module |
Method ② |
Charge activation |
APP connection | |
1、When connecting to the APP, you need to turn on the positioning and Bluetooth of the mobile phone | |
2、Open the "SMARTBMS" APP, you can see the bluetooth serial number on the home page | |
3、Enter the battery capacity accurately, click "Setting", enter the password 123456, | |
4、The SOC adopts the ampere-hour integration algorithm. When the battery capacity is set correctly, | |
Warning | |
1、BMS is a professional accessory. Misuse will cause damage. Please operate according to the instruction | |
2、BMS cannot be used in series or parallel | |
3、BMS does not support the use of reduced string numbers | |
4、BMS to work for a long time in an overloaded state is strictly forbidden | |
5、Lithium batteries need a dedicated lithium battery charger, | |
6、BMS disassembled by the user，No warranty policy | |
7、BMS is damaged due to unauthorized modification of parameters,No warranty policy | |
