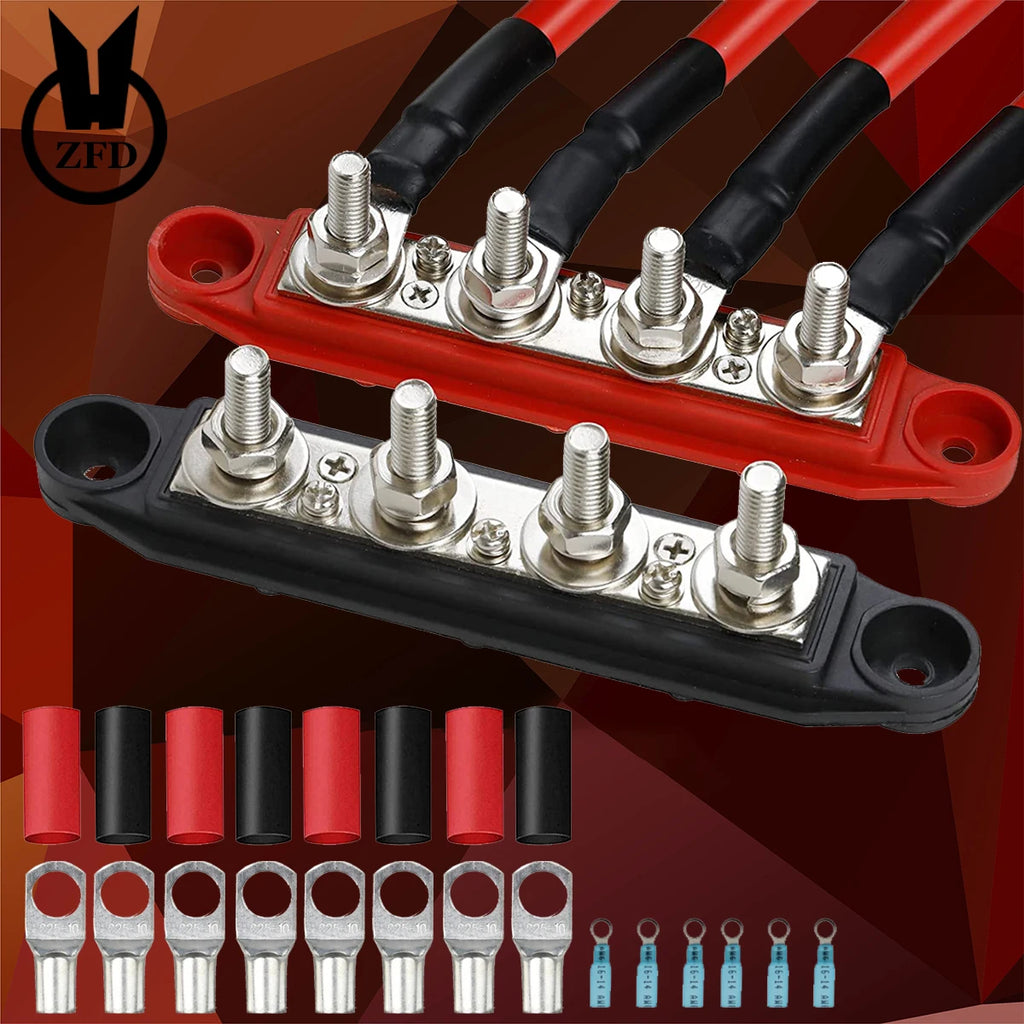

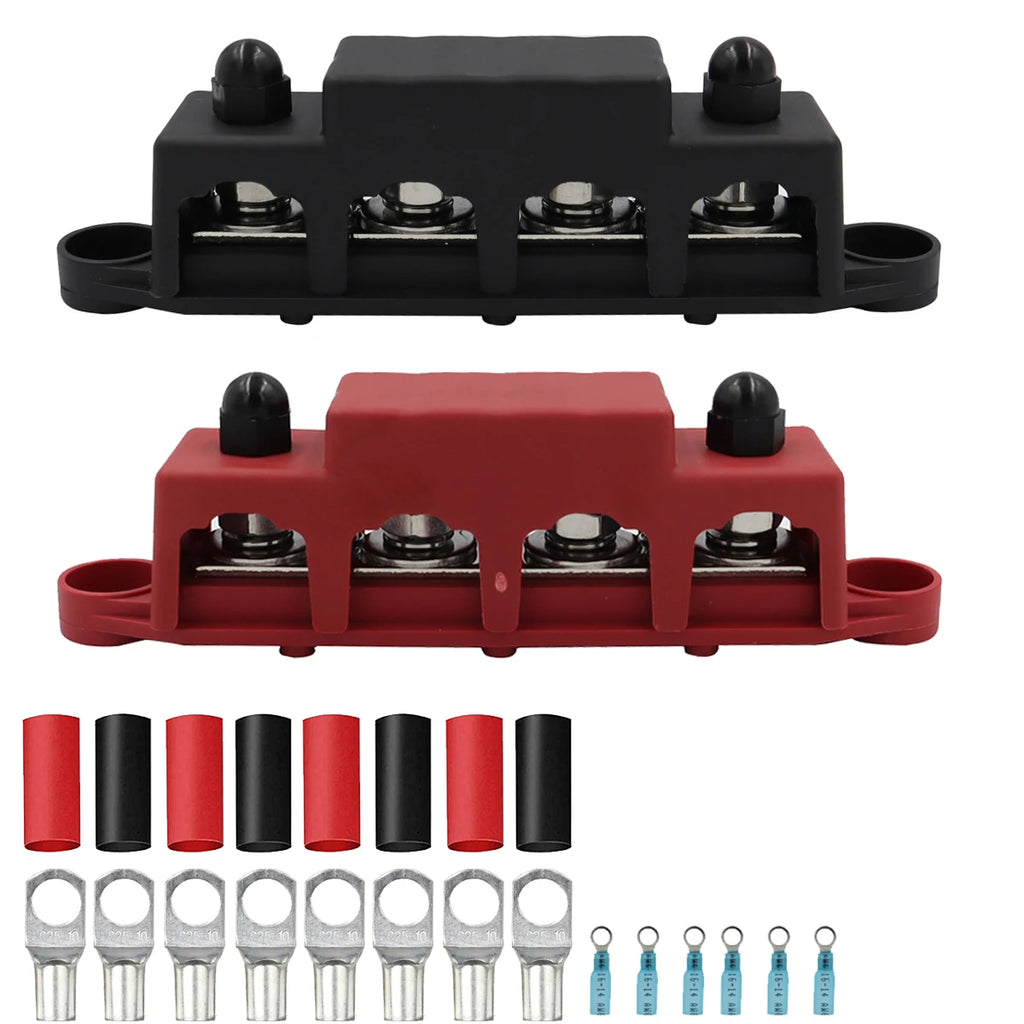

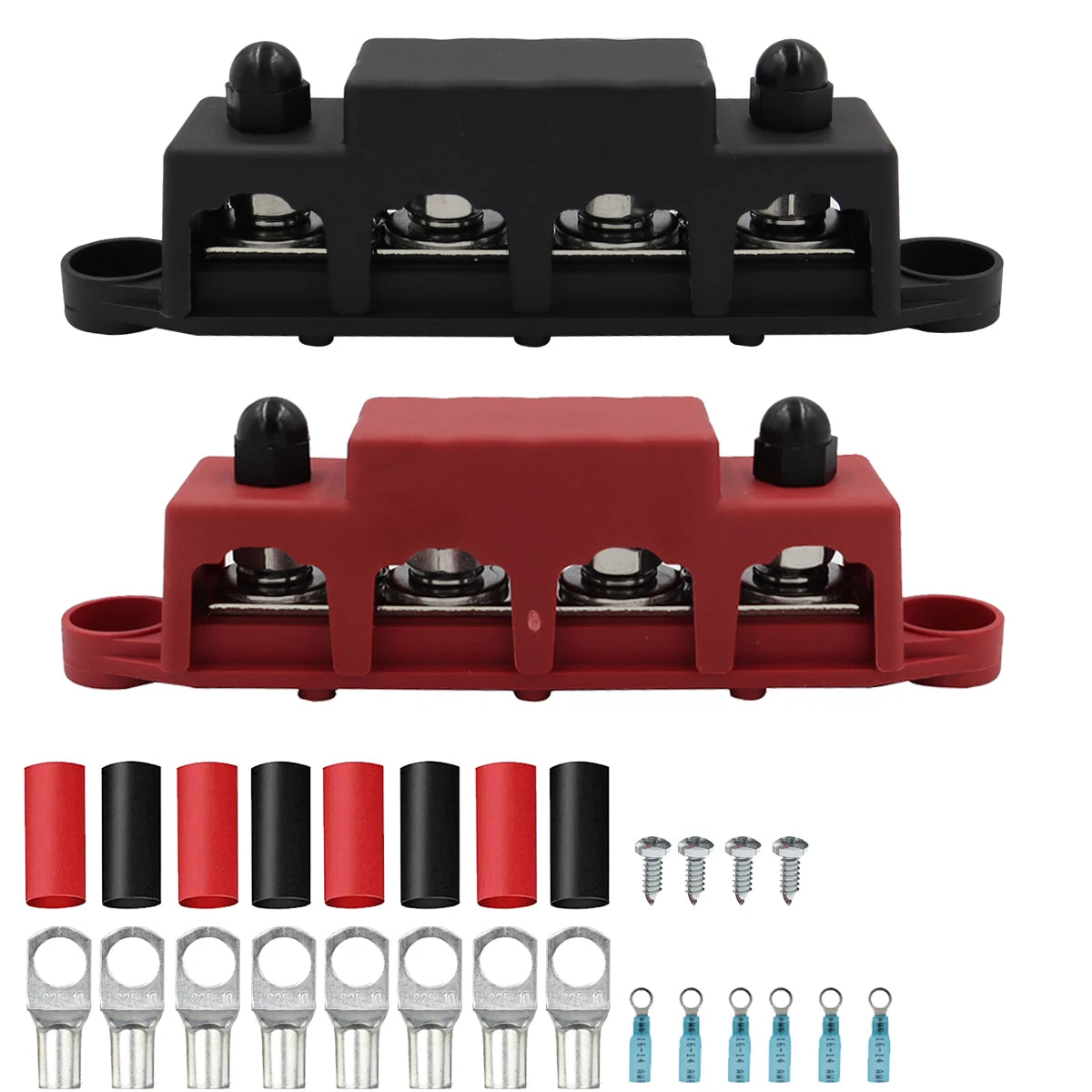

2Pcs 4 Stud Busbar Bus Bar Power Distribution M8 M10 Battery Terminal Distribution Block Marine Bus Bar, Automotive 12V 250A

4 Post Power Distribution Block Terminal Screw Bus Bar M8 M10 High Current Wiring Stud Battery Junction Block for RV Ship Car Marine Boat

Specification:

Name: High Current Wiring Stud Bus Bar

Color: Black, Red

Package: Neutral carton

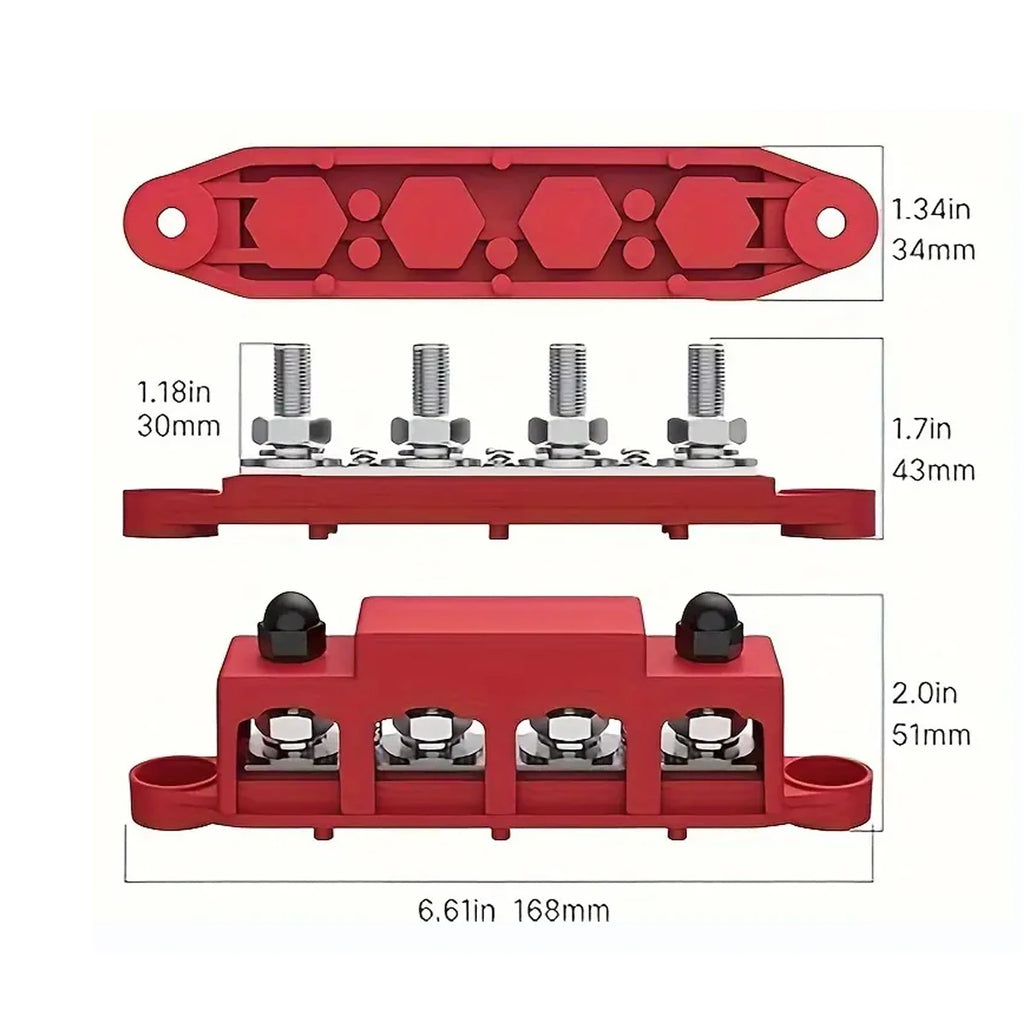

Product size: about 170*44*33mm/6.69*1.73*1.30 inch

product material: ABS, zinc alloy, brass

Maximum voltage: 48V DC

Rated current of each stud: 62.5A

Rated current of the entire electric block: 250A

Auxiliary terminal screw current: 20A

Product function: Bring the wire harnesses together to reasonably store the wires inside the vehicle and boat.

Scope of application: In the power system of automobiles, RVs, ships, yachts, etc.

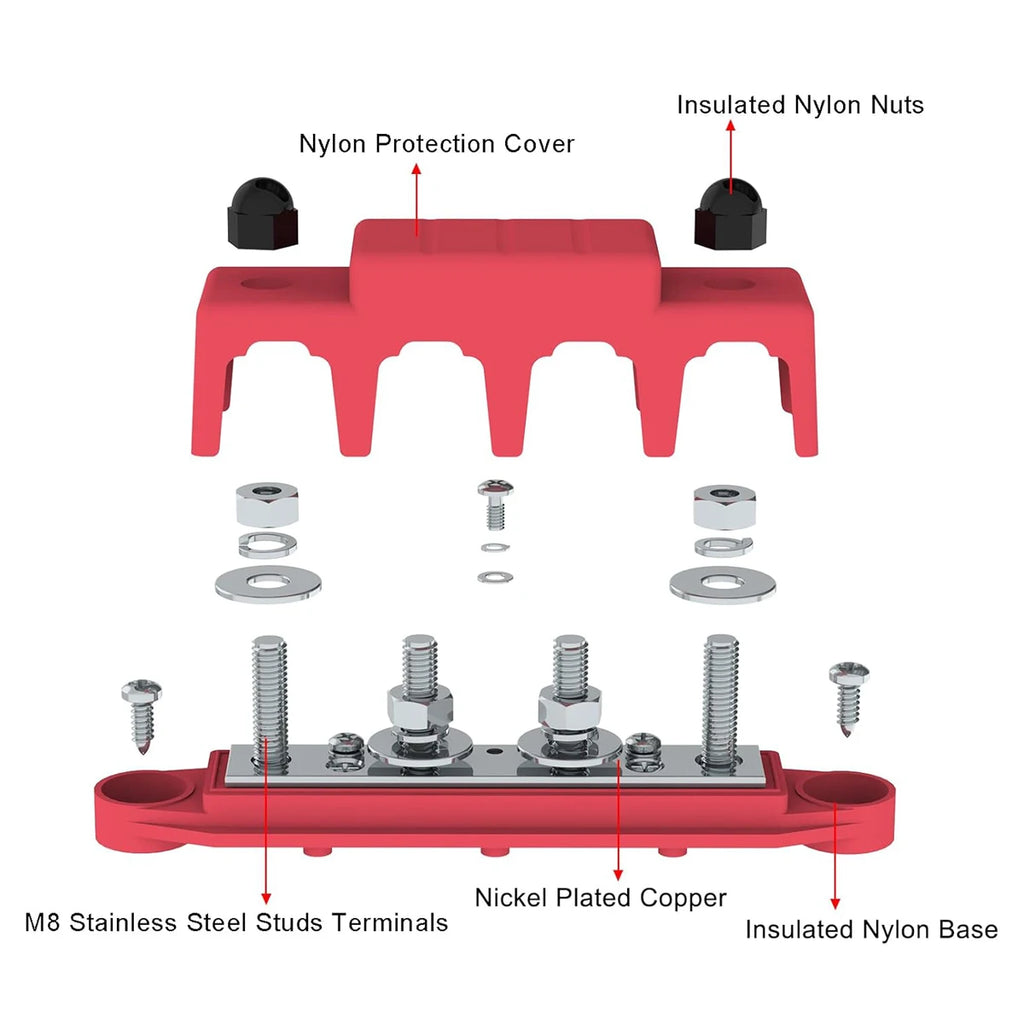

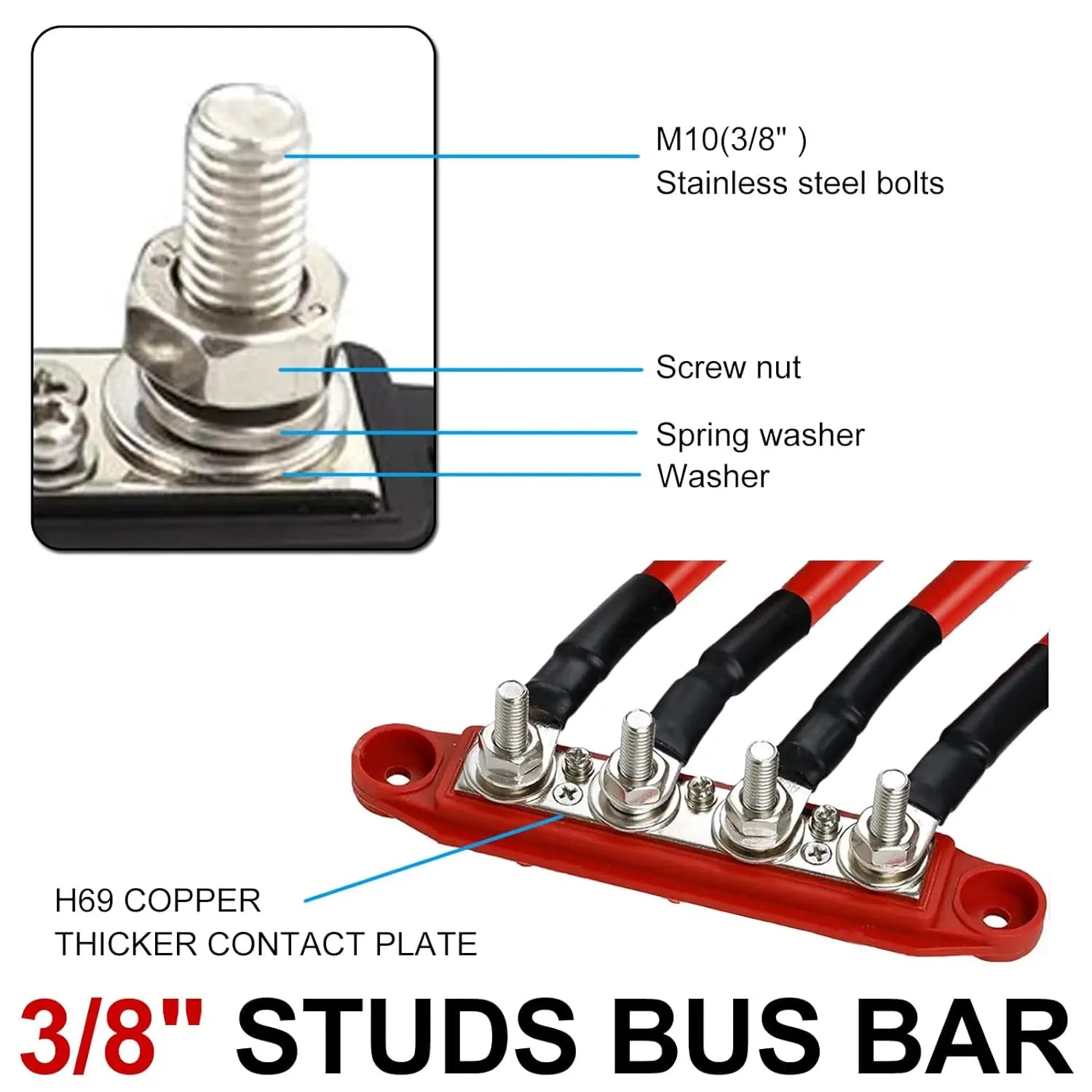

Durable & Robust: Constructed with reinforced nylon flame retardant material. The nickel-plated brass contact plate ensures even and consistent flow and stability. Stainless steel offers excellent durability and resistance to corrosion.
